NEW ZTM-H Duplex Automatic Inspecting Rewinding Machine for printing film rolls

5 0 Reviews
This machine is used for automatically inspect the printing defect and rewinding of such various roll materials as BOPP,PET,CPP, PVC, aluminum foil and paper.,etc.
Availability:
Quantity:
  • ZTM-H

  • ZONTAI

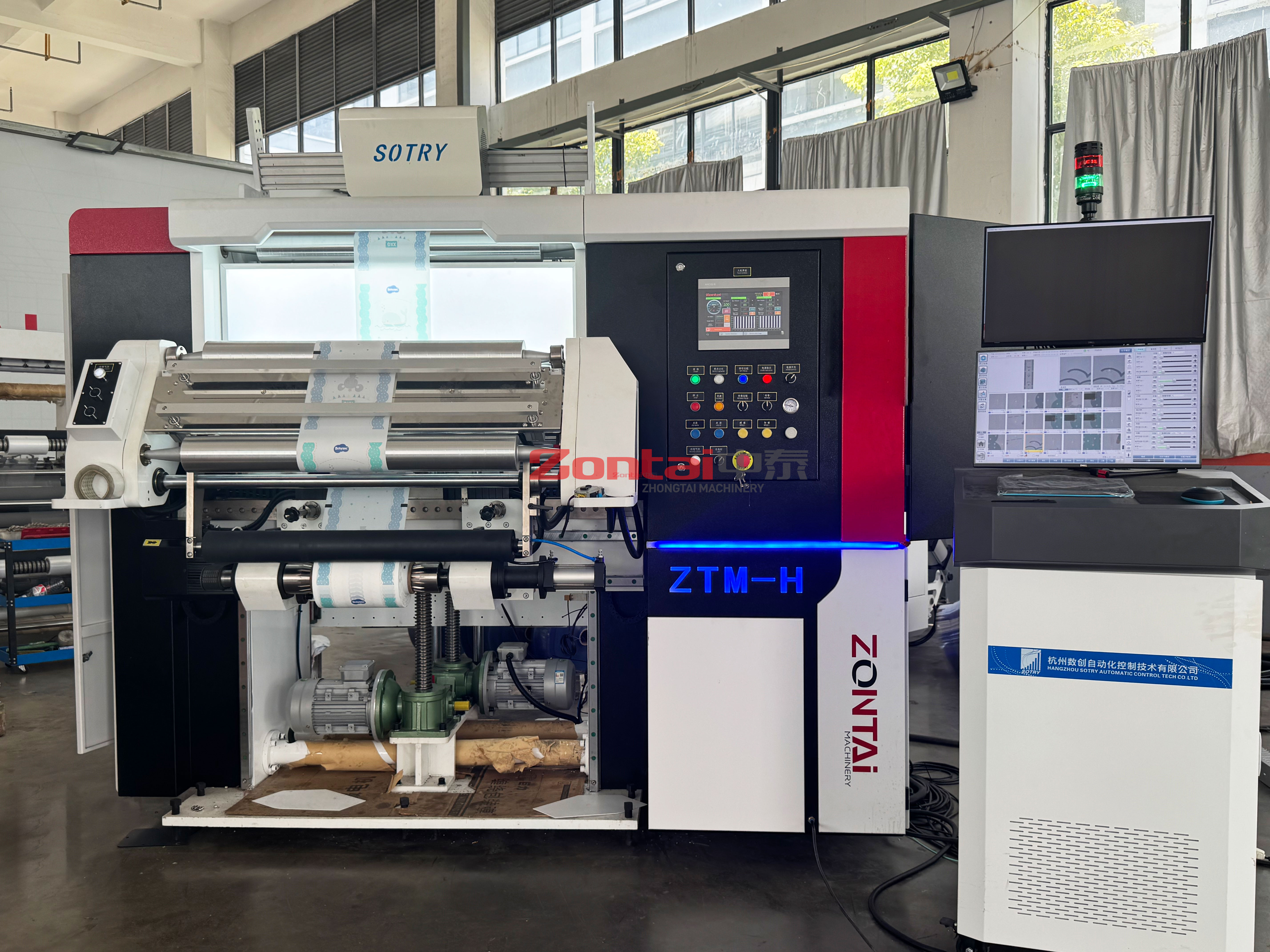

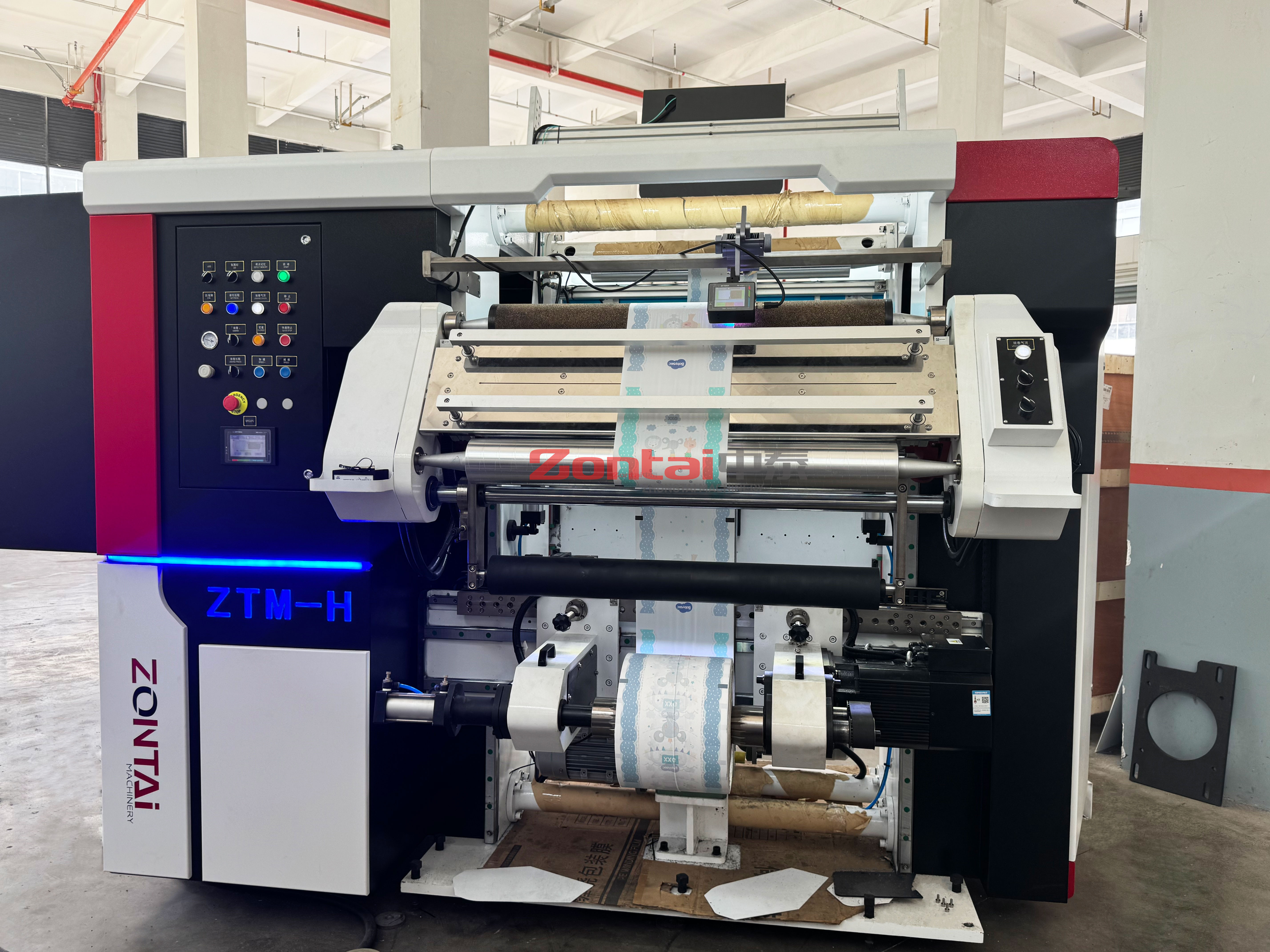

NEW ZTM-H Duplex Automatic Inspecting Rewinding Machine for printing film rolls

Its for automatic checking and rewinding film rolls, to check the printing defect, register quality, rewinding quality etc.

Its max. working speed 400m/min;

Web width 300-1300mm;

unwinder diameter 800mm, rewinder diameter 800mm, unwinder and rewinder core 3 inch and 6inch;

It can forwarder and reverse operation;

Equipped with strobe light/ inpection light for manual checking,

And it can be worked with automatic inspection system, such as AVT, DAC, E+L, Sotry, Kesai, any brands of inspecting systems.

Unwinder and rewinder use shaftless type hydraulic system control.

Material's up and down adopts separate motor and speed reducer, this type will make press roller always keep same angle in the material, Tension will be more stable than normal type.

Joint table for connecting rolls in unwinder and rewinder sides.

Good brand LPC for correct the deviation.


Main technical parameter:

Jumbo roll width

1000-1300mm

Diameter of roll

Ø800mm

Diameter of rewinding

Ø800mm

Inner dia.of paper core

3’’ and 6’’

Rewinding speed

10-400m/min

Tolerance of EPC

≤0.1mm

Total power

15KW

Weight

5000Kg

overall dimension (L X W X H)

3200mmx2100mmx1950mm
