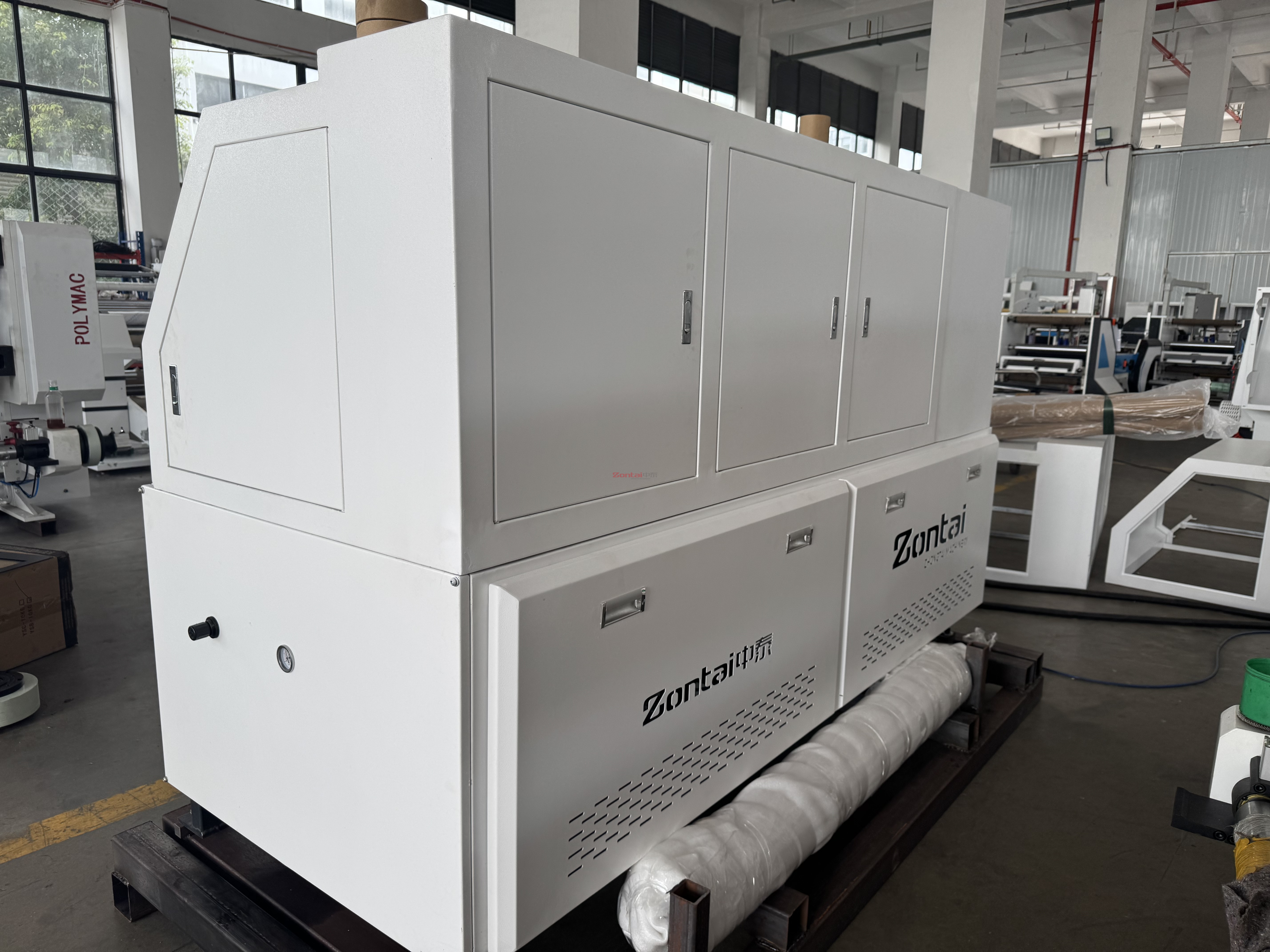

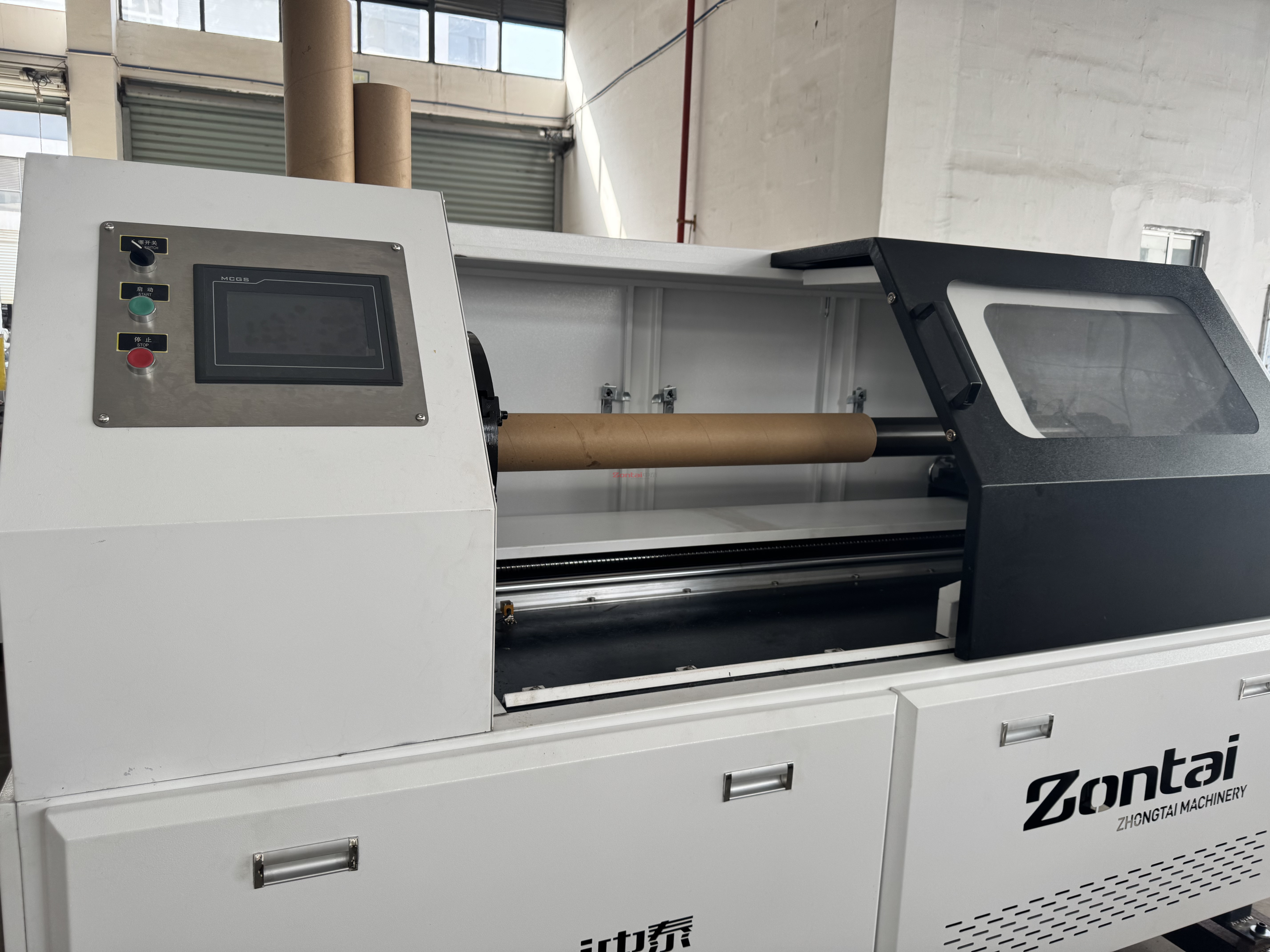

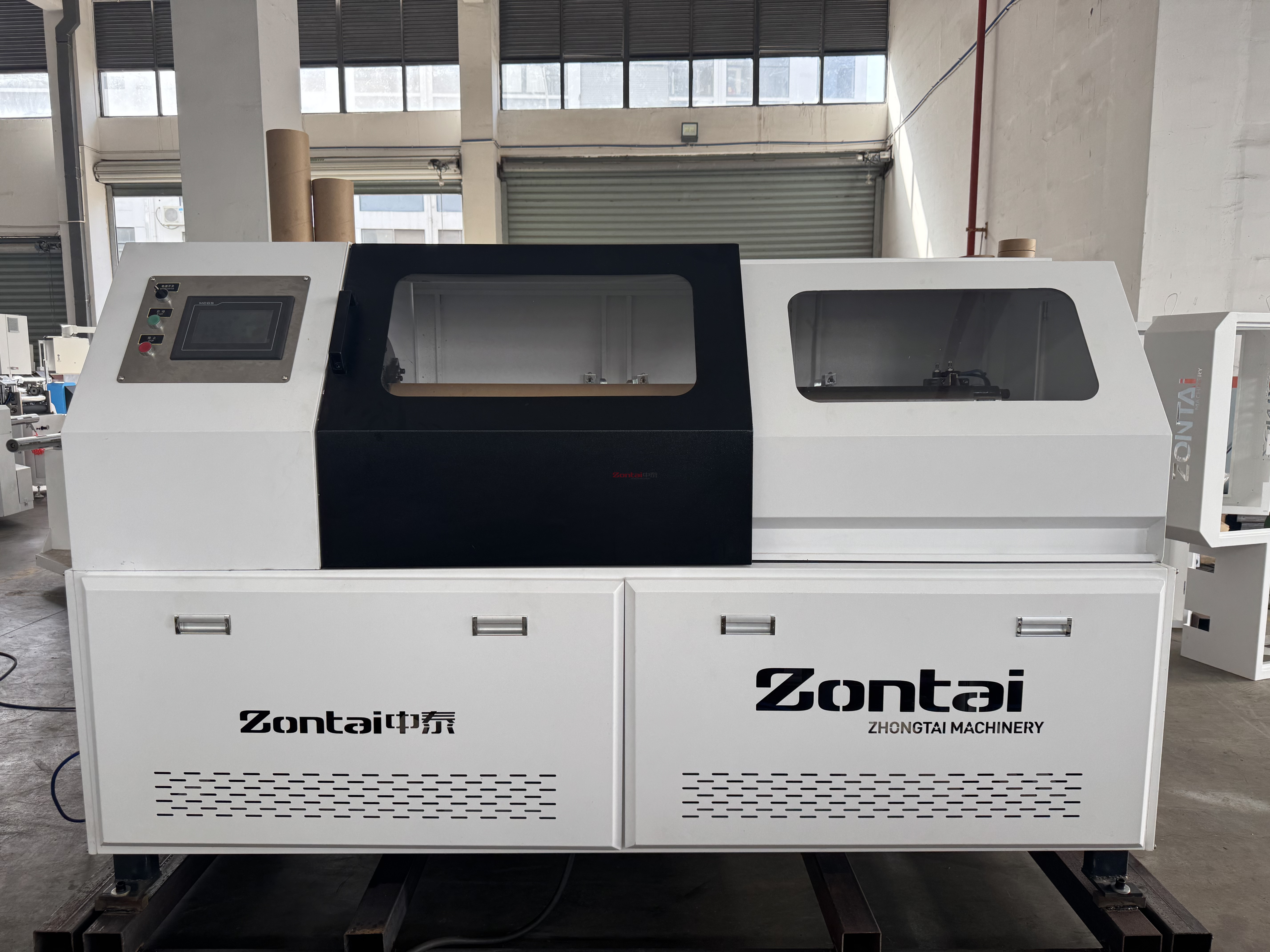

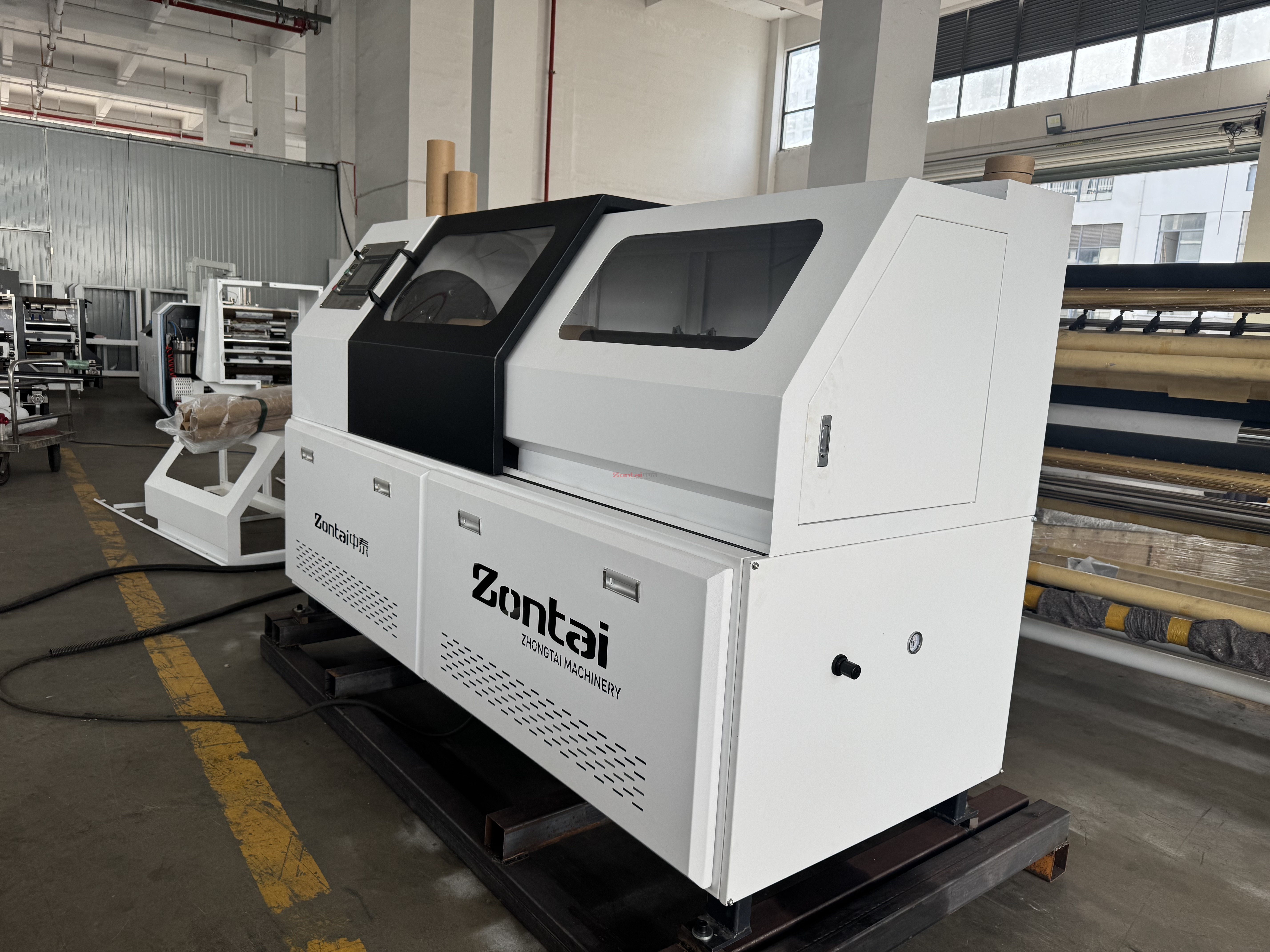

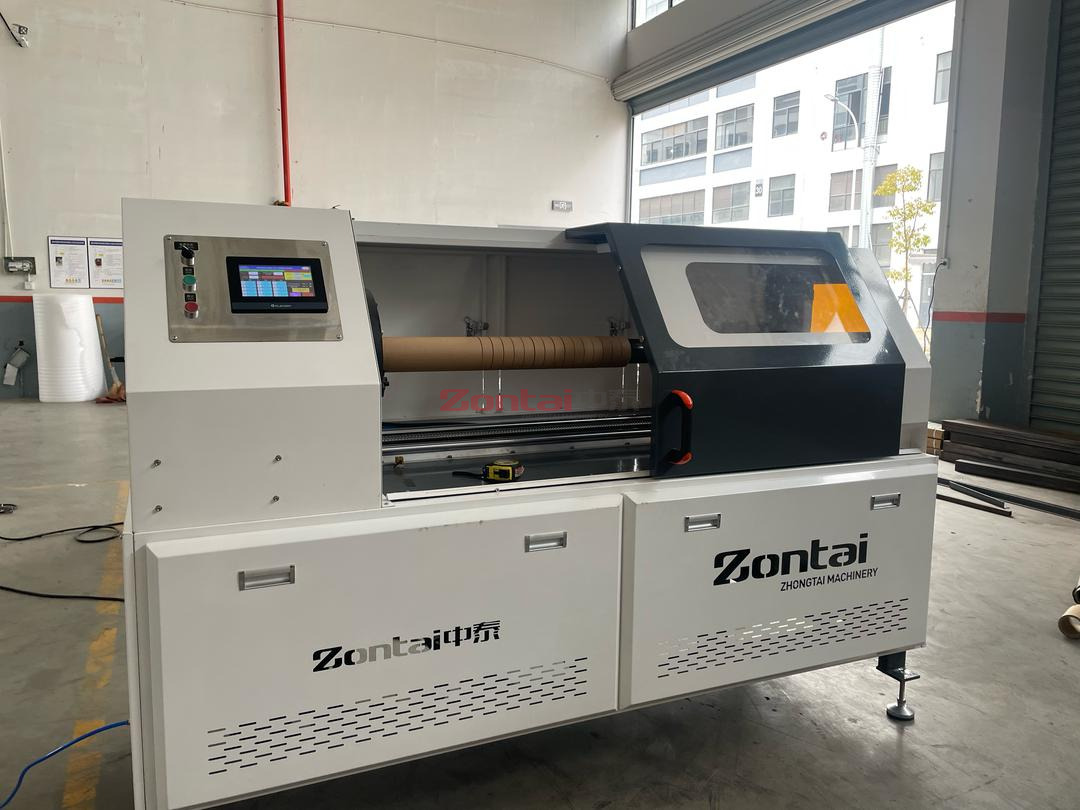

Zontai Automatic Paper Core Cutter Machine 1300-1600mm

Automatic Paper core cutter machine 1300-1600mm

Power: Main motor 2.2kw, servo motor 1.5kw
voltage: 380V
Cutting tube thickness: 3-20mm
Cutting tube inner diameter: 3inch
Tube cutting length: max.1600mm
Cutting method: pneumatic cutting
Cutting speed: 60cuts/min
Control mode: servo control
Loading mode: manual loading and unloading
Dimensions: 2500*800*1200mm
Overall weight: 500kg
Other remarks (main parts): PLC and screen display are China brands.
The drives and motors are of the China brand.
The switching power supply Mingwei Taiwan brand.
The relay is Xinling China brand.
Contactors and circuit breakers are of Delixi brand.
The ball screw is a TBI Taiwan.

Joint table for connecting rolls in unwinder and rewinder sides.

Good brand LPC for correct the deviation.

Main technical parameter：
